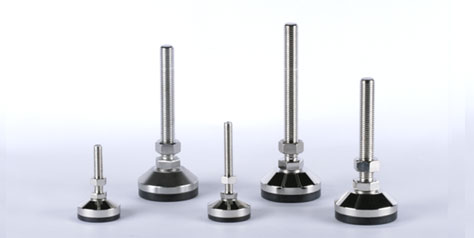

| · HOME > 지덕산업 > 조절자 > FR 시리즈 |
|
|
| |
|
|
| |
|
|
| |
제원
|
|
| |
|
모델
|
규격
|
재질
|
허용하중 (kg/4PCS)
|
|
L1
|
L
|
H1
|
H
|
B
|
A
|
Bolt/Nut
|
Pad
|
|
FR-10
|
60
|
92.5
|
24.5
|
8
|
Ø55
|
M10x1.5
|
Carbon
Steel
|
|
1,000
|
|
100
|
132.5
|
|
FR-12
|
60
|
93.5
|
9
|
M12x1.75
|
1,500
|
|
90
|
123.5
|
|
120
|
153.5
|
|
150
|
183.5
|
FR-16
SFR-16 (Stainless Steel)
|
50
|
92.5
|
31.5
|
11
|
Ø80
|
M16x2.0
|
Carbon
Steel
Stainless Steel
|
Forged
Steel & NBR
Stainless Steel & NBR
|
|
|
80
|
122.5
|
|
100
|
142.5
|
|
130
|
172.5
|
|
150
|
192.5
|
|
180
|
222.5
|
|
200
|
242.5
|
FR-20
SFR-20 (Stainless Steel)
|
100
|
145.5
|
14
|
M20x2.5
|
|
|
130
|
175.5
|
|
150
|
195.5
|
|
180
|
215.5
|
|
200
|
235.5
|
|
|
150
|
191
|
16
|
M24x3.0
|
Carbon
Steel
|
Forged
Steel & NBR
|
|
|
200
|
241
|
|
|
| |
|
|
| |
|
Material
|
Surface Treatment
|
|
Carbon & Forged Steel
|
Ni Plated
|
|
Stainless
Steel
|
Polishing
|
|
|
| |
|
|
|
| |
|
